Why the Flux?!

Resolving to really understand state management in 2018

Rob Ocel - Developer, PointSource - @robocell

In 20 Minutes Or Less

Goals

Never heard of or used state management patterns?

Using a state management library but feeling confused?

Are you a state management expert?

State Libraries Are Ubiquitous

Angular - ngrx/store, ng-redux
React - Redux, MobX, Unstated, context, setState
Vue - Vuex
Preact - Unistore

But everything changed when the Fire Nation attacked...

So what's the deal?

People get lost in Redux syntax without understanding the Redux pattern

So what's the answer? What's the pattern we're supposed to understand?

Unidirectional Data Flow

Data down; events up

State

Globally - Everything that differentiates one instance of an application from another
Locally - What a component knows better than everyone else
State Ownership
- Only one component owns a piece of state across the application
- That component is responsible for fetching, changing, passing it

When state ownership goes wrong?

Components hold duplicate state (tough to synchronize)
Hard to reason about where state is mutated
Facebook's phantom notification

Props

Passing Data - Parent-To-Child
Immutable
Loss of Fidelity


                        function BoilingVerdict(props) {
                            if (props.celsius >= 100) {
                                return Water would boil.;
                            }
                            return Water would not boil.;
                        }

Events

Passing Data - Child-To-Parent
Reflect External Input (Not Just User Input)
Can add context to the input




                        Vue.component("button-counter", {
                            template: ``,
                            props: ["amount"],
                            data: () => ({
                                counter: 0
                            }),
                            methods: {
                                incrementCounter: function() {
                                    this.counter += this.amount;
                                }
                            }
                        });

Data Hoisting/Prop Drilling

When a component needs data that none of it's parents have (but someone else owns)
Move the data to the first shared ancestor of all components that need it
Pipe the data to the components through props (prop drilling)
To edit the data, pipe events back to the new data owner


                        Vue.component("button-counter", {
                            template: ``,
                            props: ["counter", "amount"],
                            methods: {
                                incrementCounter: function() {
                                    this.$emit("increment", this.amount);
                                }
                            }
                        });

```
                    new Vue({
                        el: "#app",
                        template: `
                            <div>
                                <p>{{total}}</p>
                                <button-counter
                                    v-bind:counter="total"
                                    v-bind:amount="1"
                                    v-on:increment="incrementTotal">
                                </button-counter>
                                <button-counter
                                    v-bind:counter="total"
                                    v-bind:amount="2"
                                    v-on:increment="incrementTotal"/>
                                </button-counter>
                            </div>
                        `,
                        data: { total: 0 },
                        methods: {
                            incrementTotal: function(amount) {
                                this.total += amount;
                            }
                        }
                    });
                    ```

What happens when our tree gets larger?

What happens if we had more state to share?

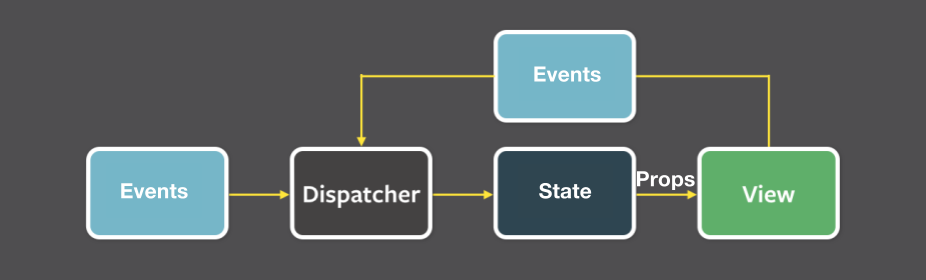

Flux/Redux

Developed by Facebook
Pattern; not library
Method for managing unidirectional data flow
Flux !== Redux (but close enough for this talk)

Store

All of the state for the application
Allows actions to be dispatched
Signals when state is updated


                            {
                                selectedSubreddit: 'frontend',
                                postsBySubreddit: {
                                    frontend: {
                                        isFetching: true,
                                        didInvalidate: false,
                                        items: []
                                    },
                                    reactjs: {
                                        isFetching: false,
                                        didInvalidate: false,
                                        lastUpdated: 1439478405547,
                                        items: [{
                                                id: 42,
                                                title: 'Confusion about Flux and Relay'
                                        },
                                        {
                                            id: 500,
                                            title: 'Creating a Simple Application'
                                        }]
                                    }
                                }
                            }

Actions

Parameterized events
Signal intent to change state
Every input is an opportunity for a new action
Comprised of:
- Type
- Data


                        { type: 'LIKE_ARTICLE', articleId: 42 }
                        { type: 'ADD_TODO', text: 'Read the Redux docs.' }
                        { type: 'FETCH_POSTS_REQUEST' }
                        { type: 'FETCH_POSTS_FAILURE', error: 'Oops' }
                        { type: 'FETCH_POSTS_SUCCESS', response: { ... } }

Reducers

(Action, State) => State
Synchronous
Pure (in some libraries)


                        function reducer(state = initialState, action) {
                            switch (action.type) {
                                case 'ADD_TODO':
                                    return Object.assign({}, state, {
                                        todos: [...state.todos, {
                                            text: action.text
                                        }]
                                    });
                                case 'SET_VISIBILITY_FILTER':
                                    return Object.assign({}, state, {
                                        visibilityFilter: action.filter
                                    });
                                default:
                                    return state;
                            }
                        }

Takeaways:

Layout your problem in a library-agnostic way using state-management principles
- State Machines (Develop your state tree)
- User Flows (Figure out your actions)
- Business Logic (Design your reducers and side-effects)
- Assign Data Ownership
Map your approach to the syntax of your library
Don’t be afraid to just take a stab at it and iterate later
